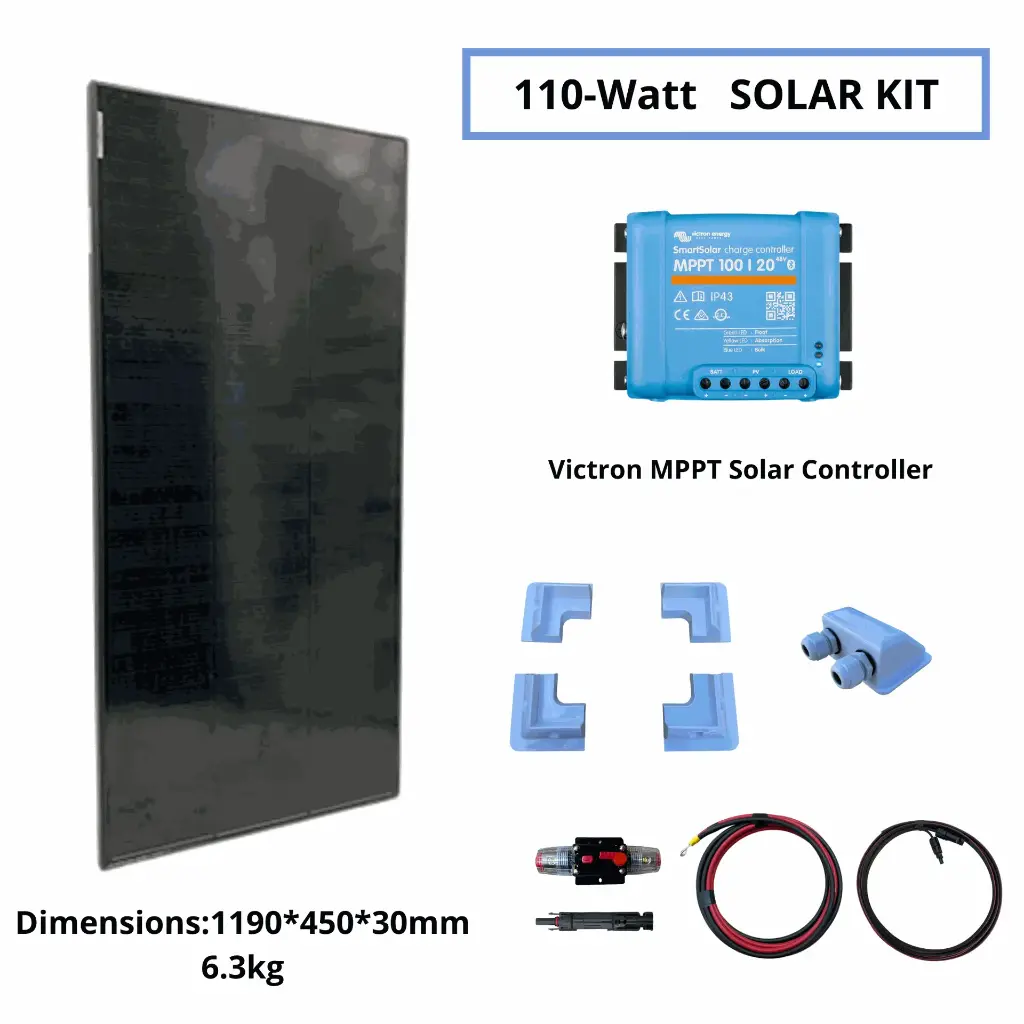

Mechanical Data 110 W Solar Panel
"Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃"
Nominal Power 110W
Cell Type Monocrystalline
Cell Efficiency 21.40%
Maximum Power Current (Impp) 4.91A
Maximum Power Voltage (Vmpp) 22.40V
Open-circuit Voltage (Voc) 26.40V
Short-circuit Current (Isc) 5.33A
Maximum System Voltage 500V
Output Tolerance: 3%
Cable:900mm / 2.5mm2
Connector Type: PV Compatible
Module Structure: Aluminum Frame / Glass / EVA /Backsheet (White/Black)
Junction box rating ≥IP67
Number of Diodes: One
Working Temperature: -40℃~+80℃
Packaging
Module Dimensions:1190*450*30mm
Module Weight: 6.3kg
20 Amp Victron Mppt Smart controller with Bluetooth
Battery voltage: 48V, 24v, 12v
Rated charge current: 20A
Nominal PV power, 12V: 290w.
Nominal PV power, 24V: 580w
Nominal PV power, 48V: 1160W
Max. PV short circuit current: 20A
Automatic load disconnect: Yes
Max. PV open circuit voltage: 100V
Peak efficiency: 98%
Self-consumption: 12V: 25 mA , 24V: 15 mA
Charge voltage 'absorption': 14,4V / 28,8V (adjustable)
Charge voltage 'float': 13,8V / 27,6V (adjustable)
Charge algorithm: multi-stage adaptive
Temperature compensation: -16 mV / oC resp. -32 mV / oC
Max. continuous load current: 1A
Protection: Battery reverse polarity (fuse) / Output short circuit / Over temperature
Operating temperature: -30 to +60oC (full rated output up to 40oC)
Humidity: 95%, non-condensing
The kit also comes with:
- 4m of 4mm solar cable and MC4 plugs connected to the cables ready to plug into the solar panel
- 2m of 6mm battery cable with lugs to bolt to battery
-15amp inline PV fuse
- 30amp inline circuit breaker
- ABS mounts for mounting and cable entry Included
