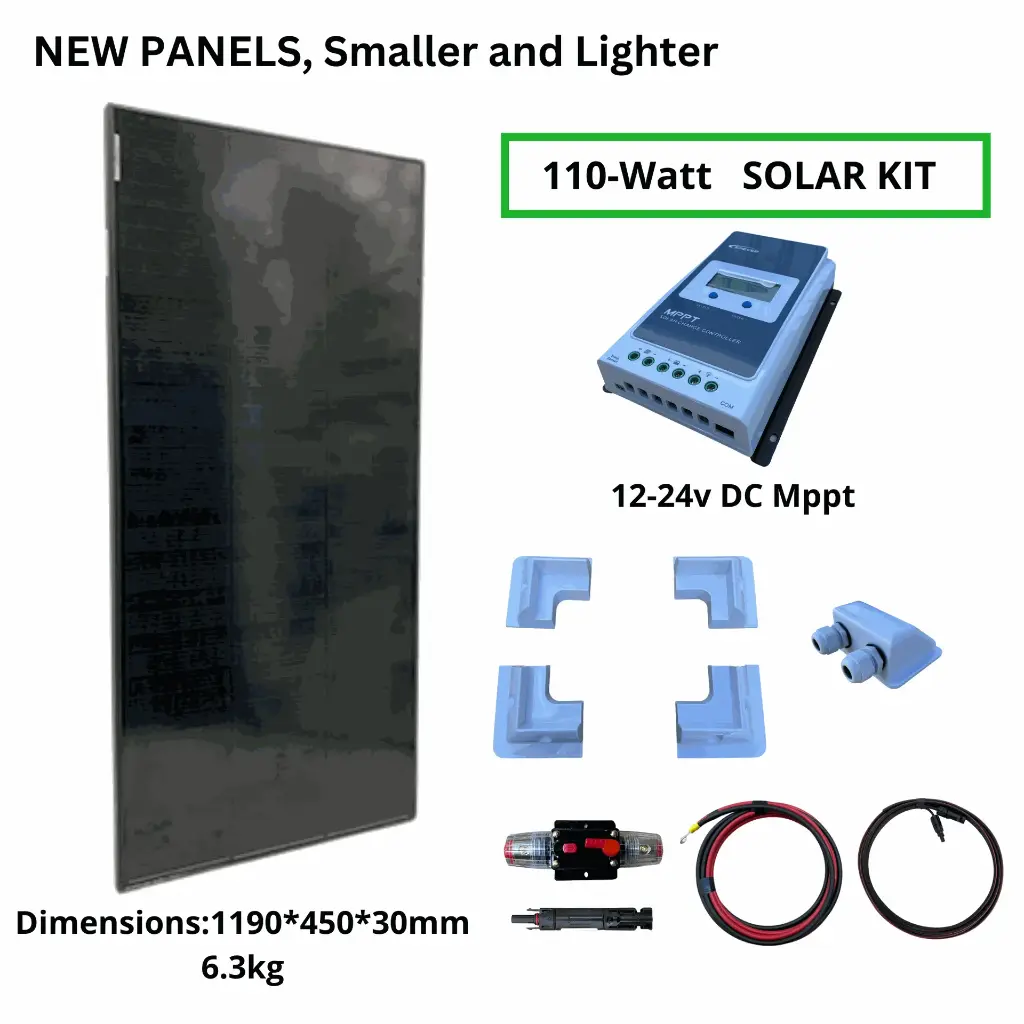

Mechanical Data 110 W Solar Panel
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃"
Nominal Power 110W
Cell Type Monocrystalline
Cell Efficiency 21.40%
Maximum Power Current (Impp) 4.91A
Maximum Power Voltage (Vmpp) 22.40V
Open-circuit Voltage (Voc) 26.40V
Short-circuit Current (Isc) 5.33A
Maximum System Voltage 500V
Output Tolerance: 3%
Cable:900mm / 2.5mm2
Connector Type: PV Compatible
Module Structure: Aluminum Frame / Glass / EVA /Backsheet (White/Black)
Junction box rating ≥IP67
Number of Diodes: One
Working Temperature: -40℃~+80℃
Packaging
Module Dimensions:1190*450*30mm
Module Weight: 6.3kg
Epever Solar Controller
*MODEL: TRACER 2210AN
*12VDC / 24VDC Auto detecting
*Rated Battery Current 20A
*Max. Solar Input Voltage 100VDC
*Max. PV input power:12V/ 260W , 24V /520W
*Dimension 220×154×52 / mm
*Weight 0.9kg
*MPPT tracking efficiency above 99.5%
*Maximum charge conversion efficiency as high as 98%
*Support lead-acid and lithium-ion batteries
*Multiple load work modes
*Charging power and current limitation function
*High-temperature charging power derating function
*Standard Modbus communication protocol with RS485 interface
*Real-time energy statistics function
*5 Years Product Warranty
The kit also comes with:
- 4m of 4mm solar cable and MC4 plugs connected to the cables ready to plug into the solar panel
- 2m of 6mm battery cable with lugs to bolt to battery
-15amp inline PV fuse
- 30amp inline circuit breaker
- ABS mounts for mounting and cable entry Included
